1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
  • Load image into Gallery viewer, 1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
  • Load image into Gallery viewer, 1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
  • Load image into Gallery viewer, 1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
  • Load image into Gallery viewer, 1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100
  • Load image into Gallery viewer, 1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100

1960 - 2021 Ford, Mercury Dynapro Radial Front Drag Brake Kit - 140-14100

140-14100-D
Vendor
Wilwood Brakes
Regular price
$1,802.85
Sale price
$1,802.85
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

140-14100-D

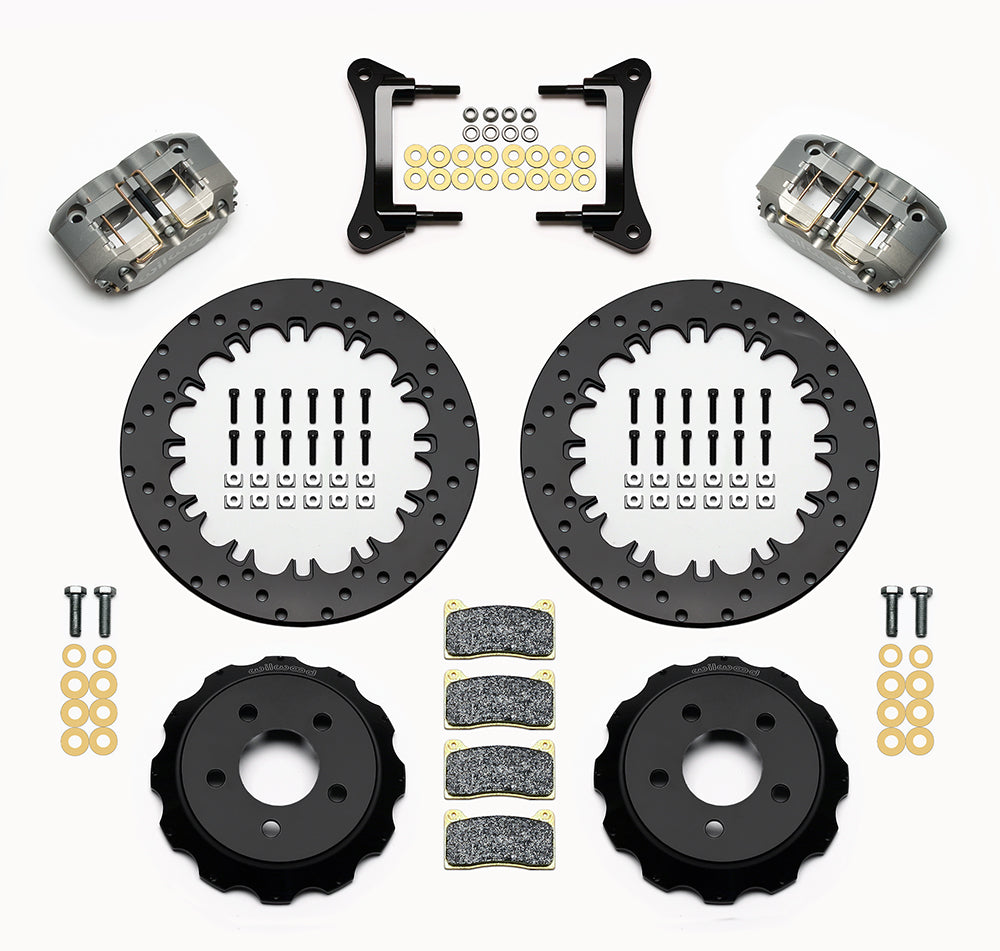

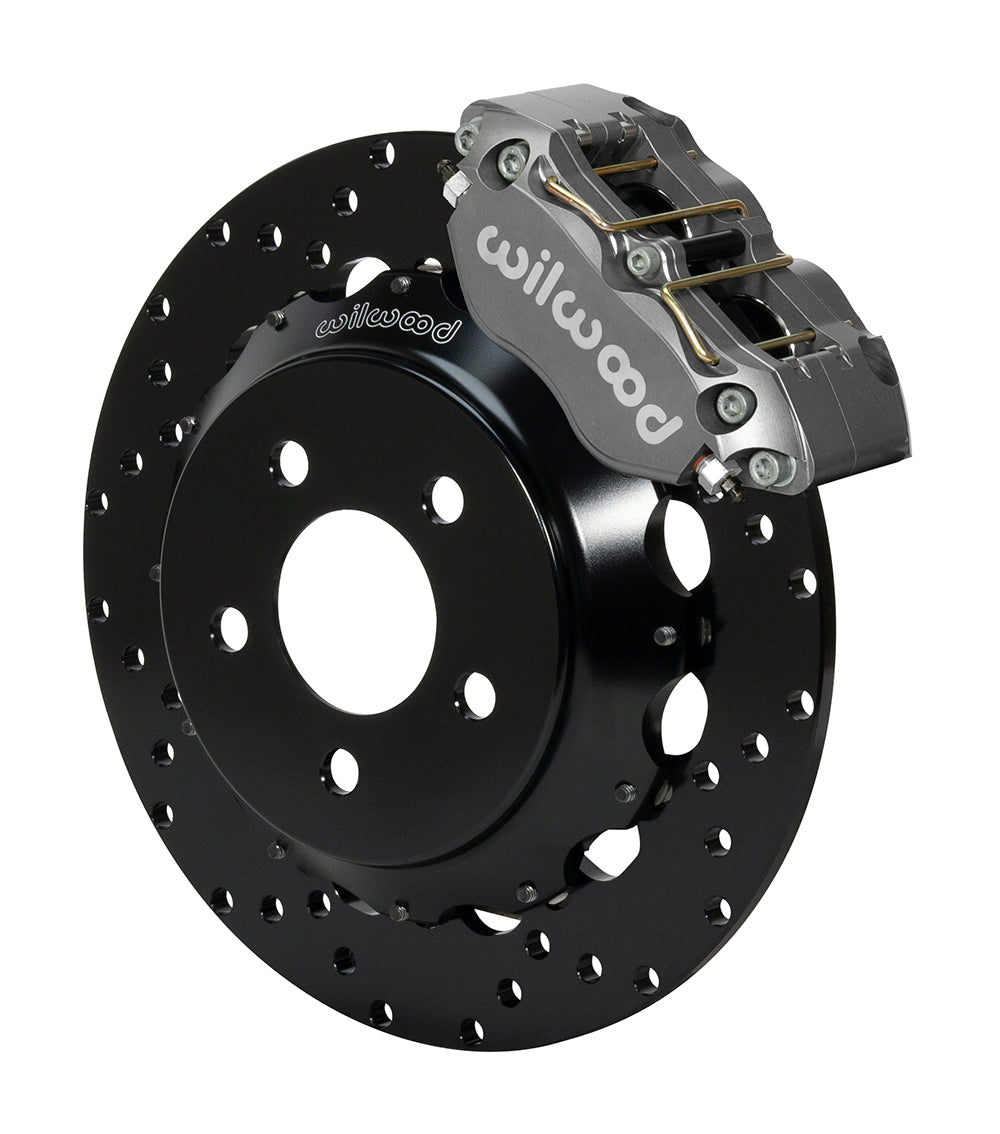

DynaPro4R Drag Race front brake kits deliver high torque stopping power with a substantial weight savings over the OE brake components. Dynamic mount steel rotors weigh only 5.7 pounds each. They attach to the OE hubs with lightweight forged aluminum hats using our T-nut mounting system that allows the rotor to move independently of the hat during heat cycles. This eliminates stress at the mount points and the subsequent rotor distortion that can otherwise occur with fixed mount steel plate rotors. Dynamic mount rotors also assure full release from the pads to run true and drag free down the track. Clamping force is provided by radial mount DynaPro 4R four piston aluminum calipers weighing in at only 4.1 pounds each. DP4R calipers feature stainless steel pistons, internal bore seals, stainless steel bridge wear plates, and allow easy access to the pads for service without removing the calipers from the mount. BP-20 compound SmartPads provide high response and holding power when cold, and resistance to fade when hot. The complete package mounts to the OE spindle with full bolt-on installation. This kit is configured for drag racing only and is not recommended for street use. A minimum size 17” wheels are required along with a stainless steel braided flexline kit available separately.
