Brake with clutch - 340-16384
Brake with clutch - 340-16384
  • Load image into Gallery viewer, Brake with clutch - 340-16384
  • Load image into Gallery viewer, Brake with clutch - 340-16384

Brake with clutch - 340-16384

340-16384
Vendor
Wilwood Brakes
Regular price
$298.80
Sale price
$298.80
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

340-16384

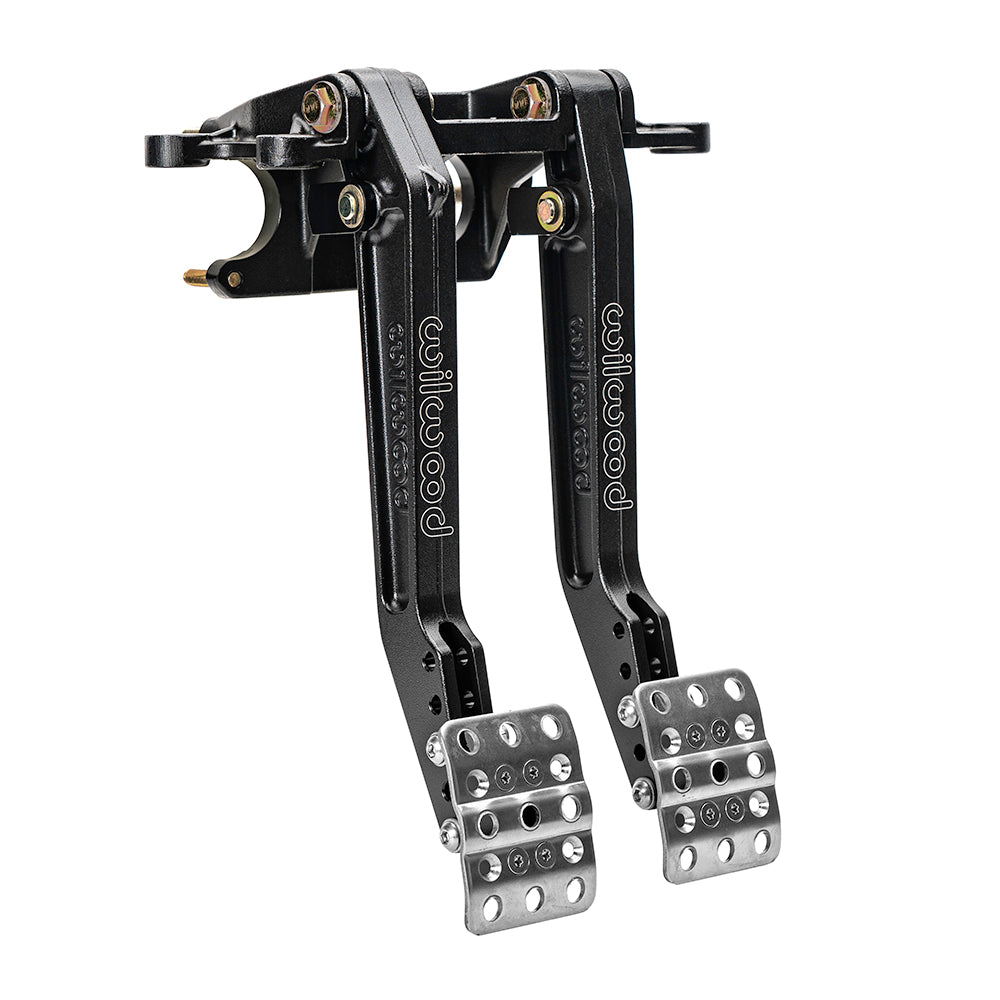

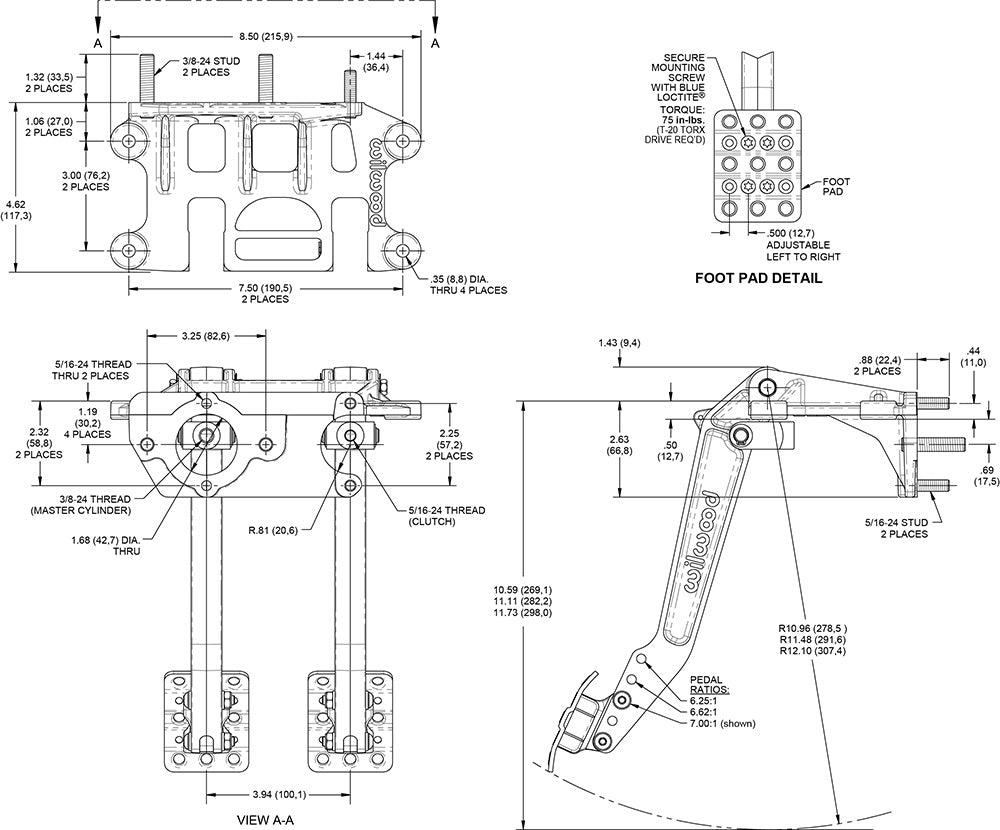

Adjustable ratio brake pedal and clutch pedal combo, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference.The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts a 2.25 inch vertical mount flange single outlet master cylinder for the clutch, and a Wilwood 3.25 inch horizontal flange tandem master cylinder for the brakes, available separately in a variety of styles and bore sizes.
