Brake,Clutch and Throttle - 340-16602
Brake,Clutch and Throttle - 340-16602
  • Load image into Gallery viewer, Brake,Clutch and Throttle - 340-16602
  • Load image into Gallery viewer, Brake,Clutch and Throttle - 340-16602

Brake,Clutch and Throttle - 340-16602

340-16602
Vendor
Wilwood Brakes
Regular price
$487.56
Sale price
$487.56
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

340-16602

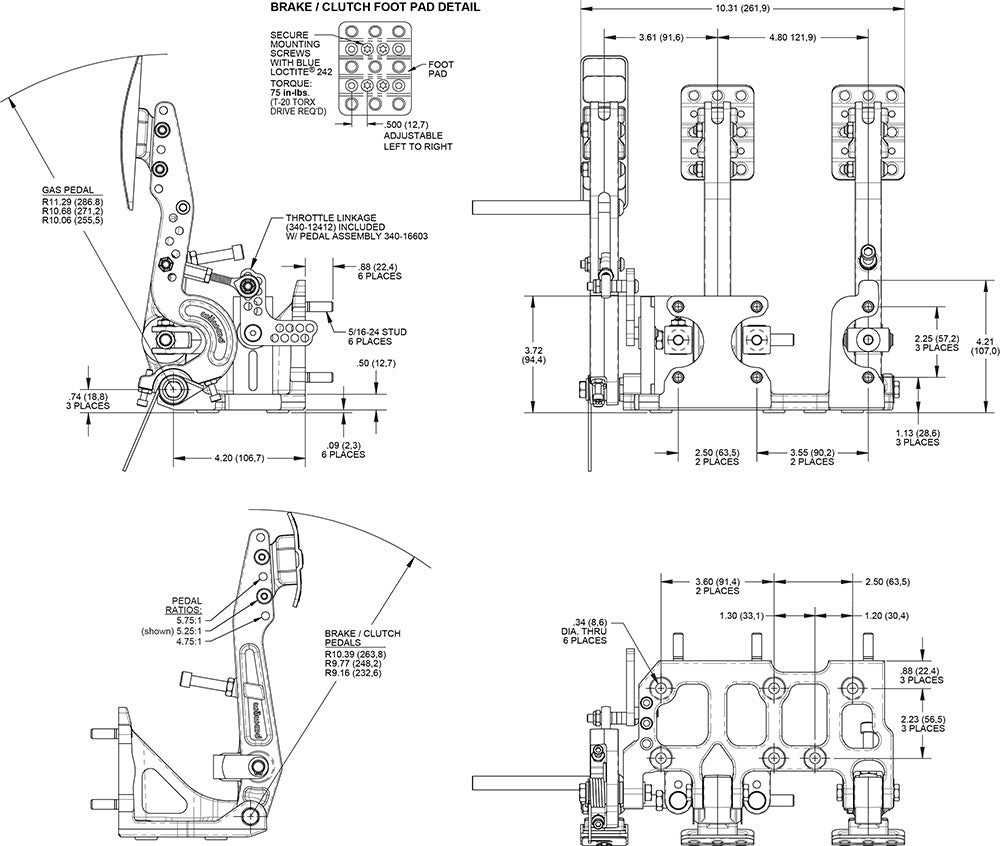

Adjustable ratio balance bar brake pedal, in a floor mount throttle, brake and clutch pedal assembly for rear engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The throttle pedal includes a pull rod for rear engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.
