At Gorsuch Performance Solutions, we take great pride in the quality of the products we offer and are thrilled to have assembled the finest dirt late model brake packages on the market.
Designed for common chassis including Longhorn, Rocket XR1 and XR1.2, Black Diamond, CVR, BMF, Capital and more, these brake packages are ready to bolt-on and win crate and super late model races.
Packages do not include master cylinders or pedals but they are available separately. Recommended master cylinder sizes for the Wilwood packages listed are 1" front and rear while the StopTech package recommends 13/16" front and 3/4" rear.
Package #1:
- (3) Wilwood FSLI calipers with 1.75"/1.88" staggered pistons (LF, LR, RR)
- (1) Wilwood FNDL caliper with 1.38"/1.38" pistons (RF)
- (1) Rear Pad Set, #4 compound
- (1) Front Pad set, #2 compound LF, #0 compound RF
- (4) Curved vane/directional 6.7lb .810" brake rotors
- (4) Wilwood rotor to hub bolt kits
- (2) Cans StopTech STR600 brake fluid
Package #2:
- (4) Wilwood BNDLR calipers (1.75"/1.75", 1.88"/1.88" x2, 1.38" RF)
- (4) Wilwood BNDLR radial mount caliper brackets
- (1) Rear Pad Set, #4 compound
- (1) Front Pad set, #2 compound LF, #0 compound RF
- (4) Curved vane/directional 6.7lb .810" brake rotors
- (4) Wilwood rotor to hub bolt kits
- (2) Cans StopTech STR600 brake fluid
Package #3:
- (4) Wilwood BNDLR calipers (1.75"/1.75", 1.88"/1.88" x2, 1.38" RF)
- (4) Wilwood radial mount caliper brackets
- (1) Rear Pad Set, #4 compound
- (1) Front Pad set, #2 compound LF, #0 compound RF

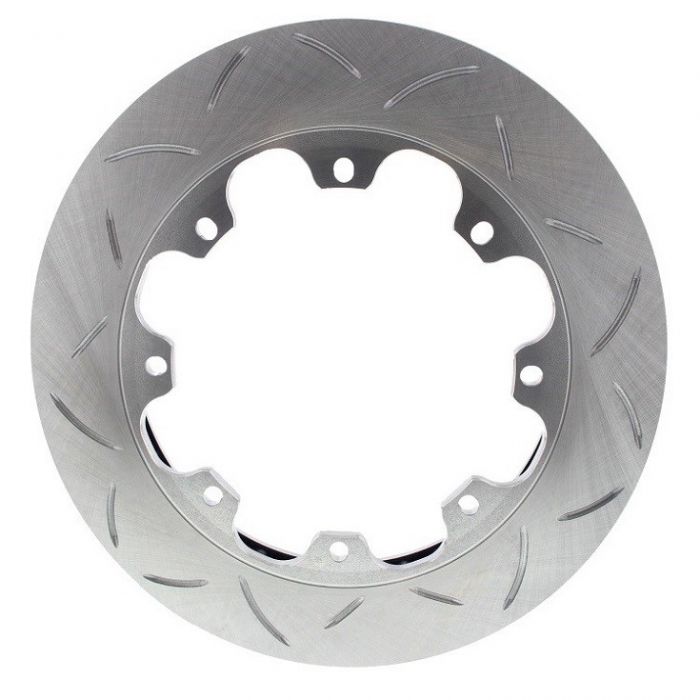

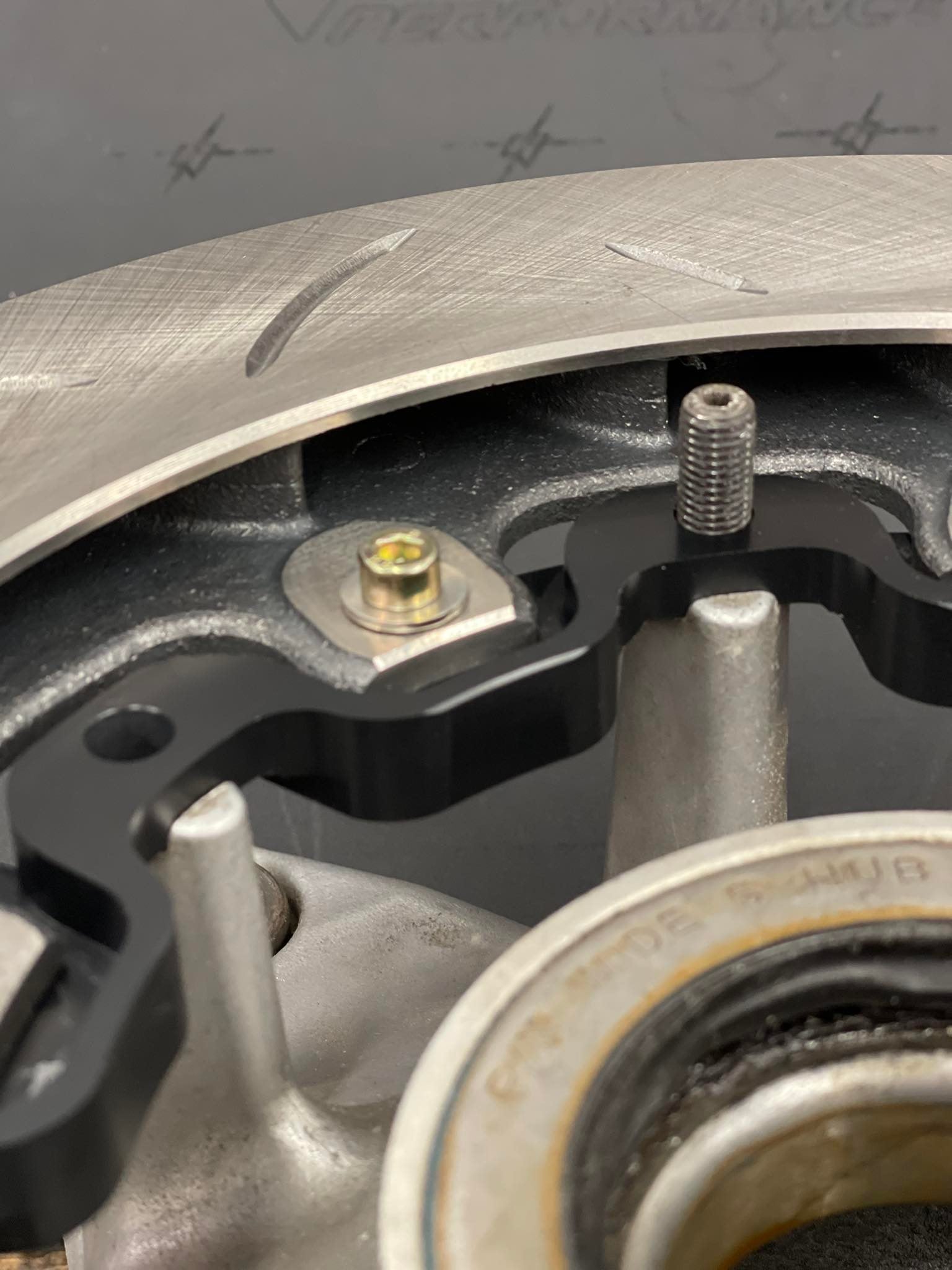

- (4) Floating curved vane/directional 6.7lb .810" brake rotors
- (4) Floating rotor hats
- (4) Floating rotor hardware kits
- (4) Wilwood rotor to hub bolt kits
- (2) Cans StopTech STR600 brake fluid
Package #4:

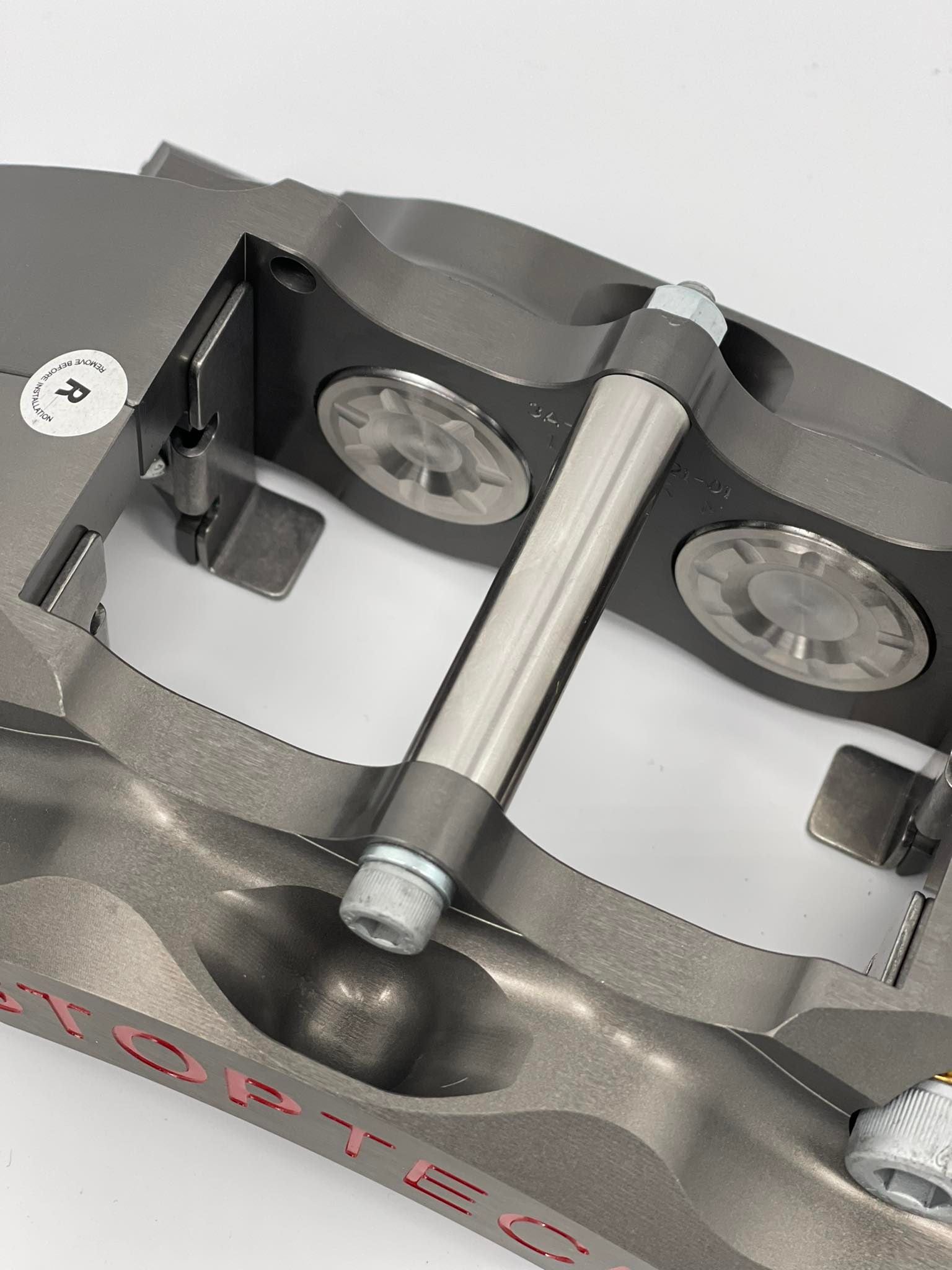

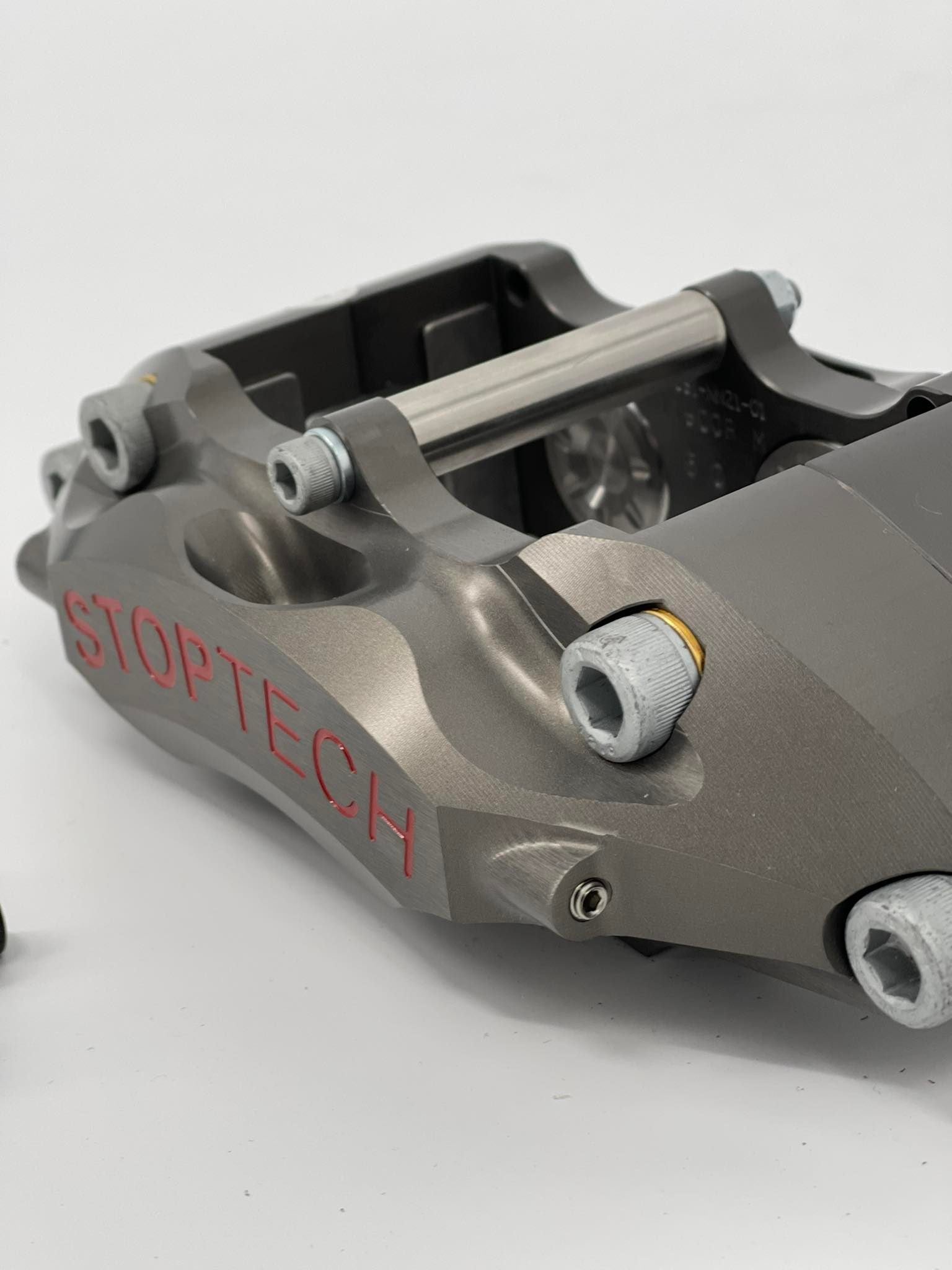

- (4) StopTech C42 calipers (28/32mm LF, 30/34mm rears, 26/26mm RF)

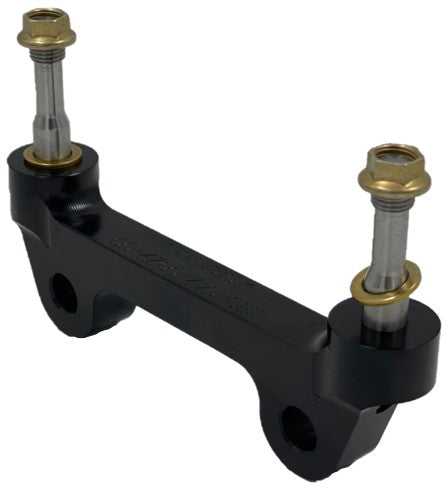

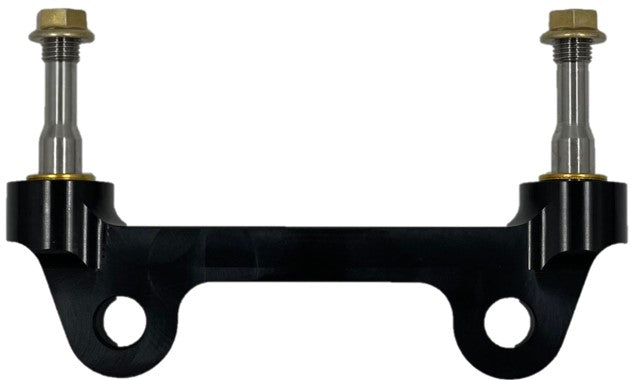

- (4) StopTech radial mount caliper brackets
- (2) StopTech caliper shim kits - radial adjustment
- (2) StopTech caliper shim kits - axial adjustment
- (1) Rear Pad Set, #4 compound
- (1) Front Pad set, #2 compound LF, #0 compound RF
- (4) Floating curved vane/directional 6.7lb .810" brake rotors
- (4) Floating rotor hats
- (4) Floating rotor hardware kits
- (4) Wilwood rotor to hub bolt kits
- (1) Left rear stainless caliper guard
- (2) Cans StopTech STR600 brake fluid
Please be aware that floating rotor packages are not compatible with the Wilwood 55xd hub. However, if you have this hub, we can still provide a floating-rotor option.. simply call or email and we will put together a package for you! Additional caliper and rotor options are available as well.
