261-14250-BK
Wilwood's new 15/16” Remote Tandem Master Cylinder w/ Pushrod is designed primarily for Manual Brakes. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. Packaged with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. This master cylinder features a black e-coat finish.

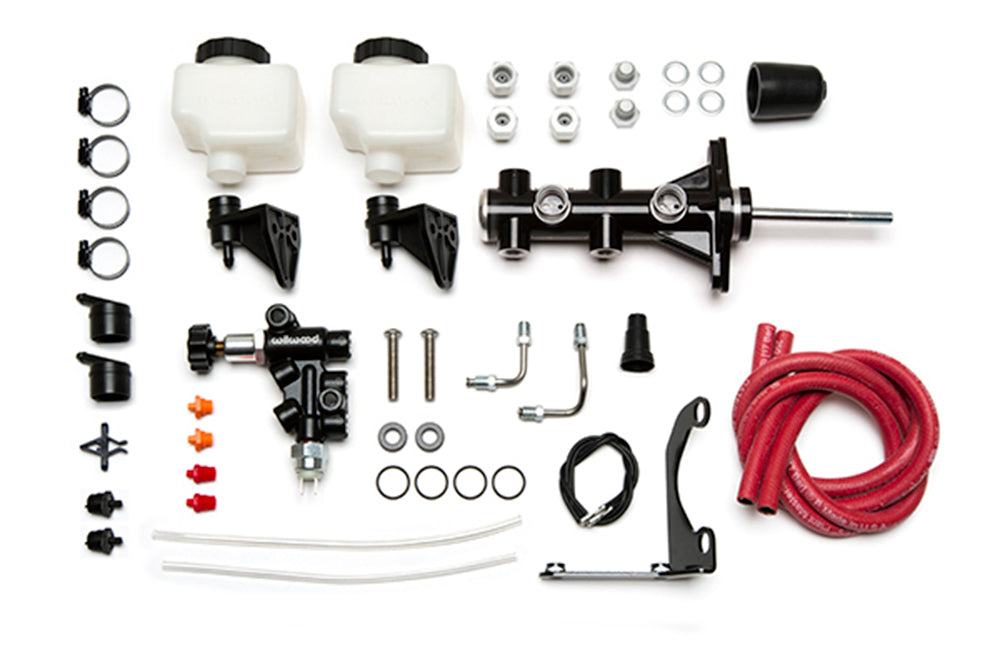

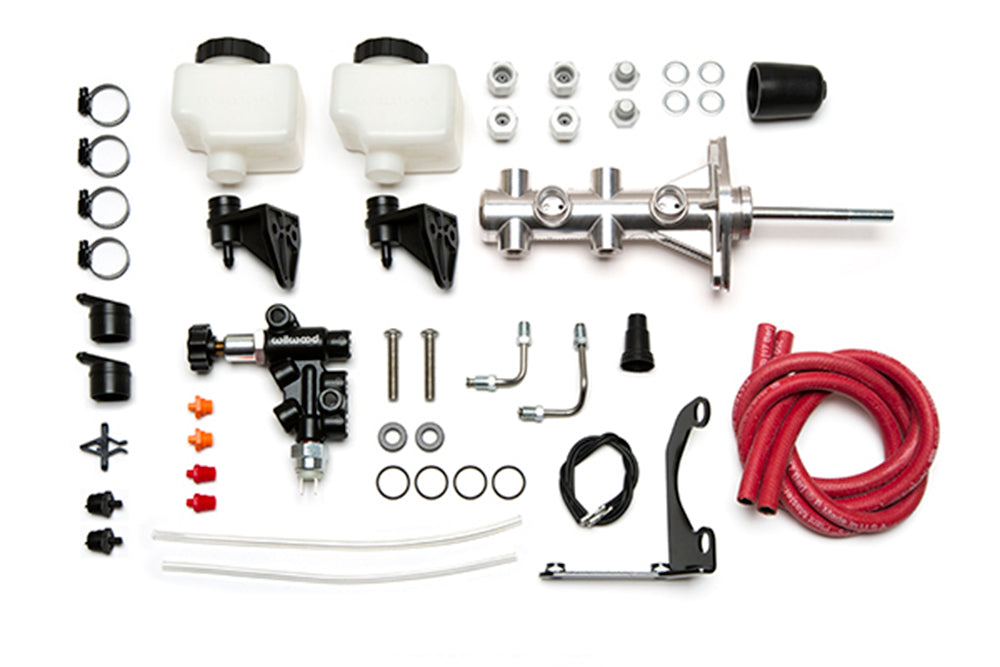

Wilwood has packaged the pushrod equipped Remote Tandem Chamber Master Cylinder in a kit with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware. Wilwood's Tandem Master Cylinders represents the latest in refinement in brake pressure actuation and fluid control. The included captured pushrod is for manual brake equipped cars or conversions. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22” to 3.40” on center studs. Kit includes two 7 oz. fluid reservoirs, clamps, brackets, and hoses for direct or remote mounting. The Combination Proportioning Valve substantially simplifies wiring and brake proportioning, incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Simply connect the fluid lines, bleed the system, and you're finished.
Wilwood has packaged the pushrod equipped Remote Tandem Chamber Master Cylinder in a kit with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware. Wilwood's Tandem Master Cylinders represents the latest in refinement in brake pressure actuation and fluid control. The included captured pushrod is for manual brake equipped cars or conversions. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22” to 3.40” on center studs. Kit includes two 7 oz. fluid reservoirs, clamps, brackets, and hoses for direct or remote mounting. The Combination Proportioning Valve substantially simplifies wiring and brake proportioning, incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Simply connect the fluid lines, bleed the system, and you're finished.
